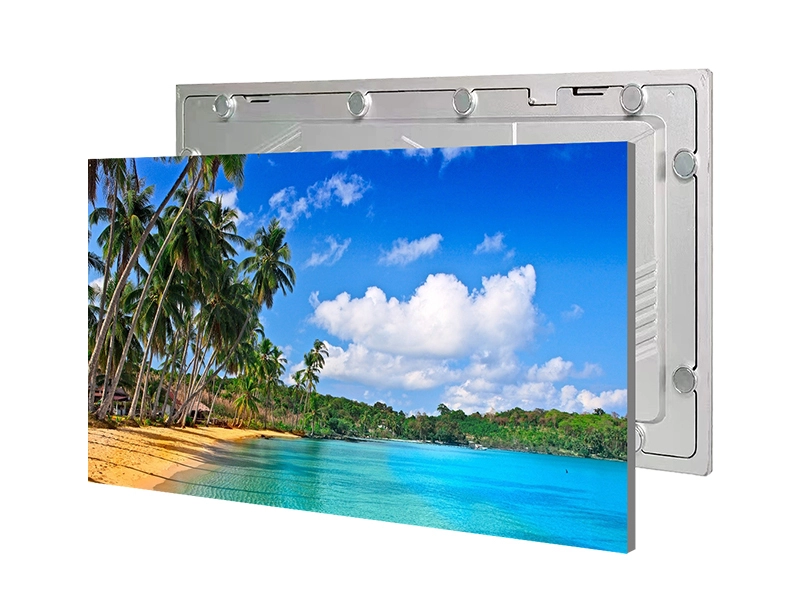

TC-DM series Inverted COB Display Module IP65 175°View 3840HZ Indoor Fixed Installation
TC-DM Series
Packaging Method: Inverted COB
Module Size: 320mm*160mm
Pitch: 1.25mm/1.538mm/1.86mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; Positive protection level IP65; Viewing angle exceeding 175 °; More flexible size selection; 3840HZ high refresh rate; 20000:1 high contrast; Good consistency of white balance.
Application Scenarios: Indoor fixed installation,Supermarkets, Schools, Hospitals, etc
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
DESCRIPTION
This product is a fully inverted COB display module product, which can be matched with standard sizes such as 640x480mm/640x640mm, and can also be customized with module splicing according to the actual environment to play high-definition video/image sources.
Product specification
| Product Model | TC-DM series | |||
| Pixel | 1.25 | 1.538 | 1.86 | |
| Pixel density (pixels/㎡) | 640000 | 422500 | 288906 | |
| LED packaging method | Fully inverted COB | |||
| Module Size | 320mm*160mm | |||
| Module resolution | 256*128 | 208*104 | 172*86 | |
| Material of module bottom shell | Aluminum bottom shell | |||
| Module weight (Kg/pcs) | 0.5 | |||
| Falsh correction storage | Have | |||
| White Balance Brightness (nits) | 600 | |||
| Viewing angle (degrees) | Horizontal 170 °, vertical 170 ° | |||
| Refresh rate (Hz) | 3840Hz | |||
| contrast ratio | 100000：1 | |||
| Color temperature (K) | 2000-10000(Adjustable) | |||
| luminance uniformity | 97% | |||
| Chromaticity uniformity | ±0.003Cx,Cy | |||
| Brightness/chromaticity correction | All supported | |||
| Display unit input voltage | AC 100~240V 50/60Hz | |||
| Working voltage (V) | DC 4.5-5.0 | |||
| Maximum power (W/pcs) | 20 | 18 | 18 | |
| Maintenance method | Front/Rear Maintenance | |||
| Module signal interface | HUB320 | |||
| IP protection level | IP54(Surface can be cleaned with clean water) | |||
| Working temperature and humidity range | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage temperature and humidity range | ﹣40℃-+60℃/10%RH-90%RH | |||
| Working life (H) | 100000 | |||
| Authentication | CCC, CQC, CEC, CE, FCC, ROHS, TUV | |||
Product rendering
