TC-ZM series 320mm*160mm LED Display Low Failure IP65 175°View Indoor Use
TC-ZM Series
Packaging Method: Formal dress COB
Module Size: 320mm*160mm
Pitch: 1.25mm/1.538mm/1.86mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; The lamp surface can be cleaned, with better sealing, and the front is waterproof to IP65; Viewing angle exceeding 175 °; Adopting aluminum bottom shell with good flatness; More flexible size selection
Application Scenarios: Indoor fixed installation, Supermarkets, schools, hospitals, etc
Product specification
| Product Model | TC-ZM Series | |||
| Pixel | 1.25 | 1.538 | 1.86 | |
| Pixel Density (pixels/㎡) | 640000 | 422500 | 288906 | |
| LED Packaging Method | Formal Dress COB | |||
| Module Size | 320mm*160mm | |||
| Module Resolution | 256*128 | 208*104 | 172*86 | |
| Material of Module Bottom Shell | Aluminum Bottom Shell | |||
| Module Weight (Kg/pcs) | 0.5 | |||
| Falsh Correction Storage | Have | |||
| White Balance Brightness (nits) | 600 | |||
| Viewing Angle (degrees) | Horizontal 160 °, Vertical 160 ° | |||
| Refresh Rate (Hz) | 3840Hz | |||
| Contrast Ratio | 100000：1 | |||
| Color Temperature (K) | 2000-10000(Adjustable) | |||
| luminance Uniformity | 97% | |||
| Chromaticity Uniformity | ±0.003Cx, Cy | |||
| Brightness/Chromaticity Correction | All Supported | |||
| Display Unit Input Voltage | AC 100~240V 50/60Hz | |||
| Working Voltage (V) | DC 4.5-5.0 | |||
| Maximum Power (W/pcs) | 28 | 25 | 25 | |
| Maintenance Method | Front/Rear Maintenance | |||
| Module Signal Interface | HUB320 | |||
| IP Protection Level | IP54(Surface can be cleaned with clean water) | |||
| Working Temperature and Humidity Range | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Temperature and Humidity Range | ﹣40℃-+60℃/10%RH-90%RH | |||
| Working Life (H) | 100000 | |||
| Authentication | CCC, CQC, CEC, CE, FCC, ROHS, TUV | |||

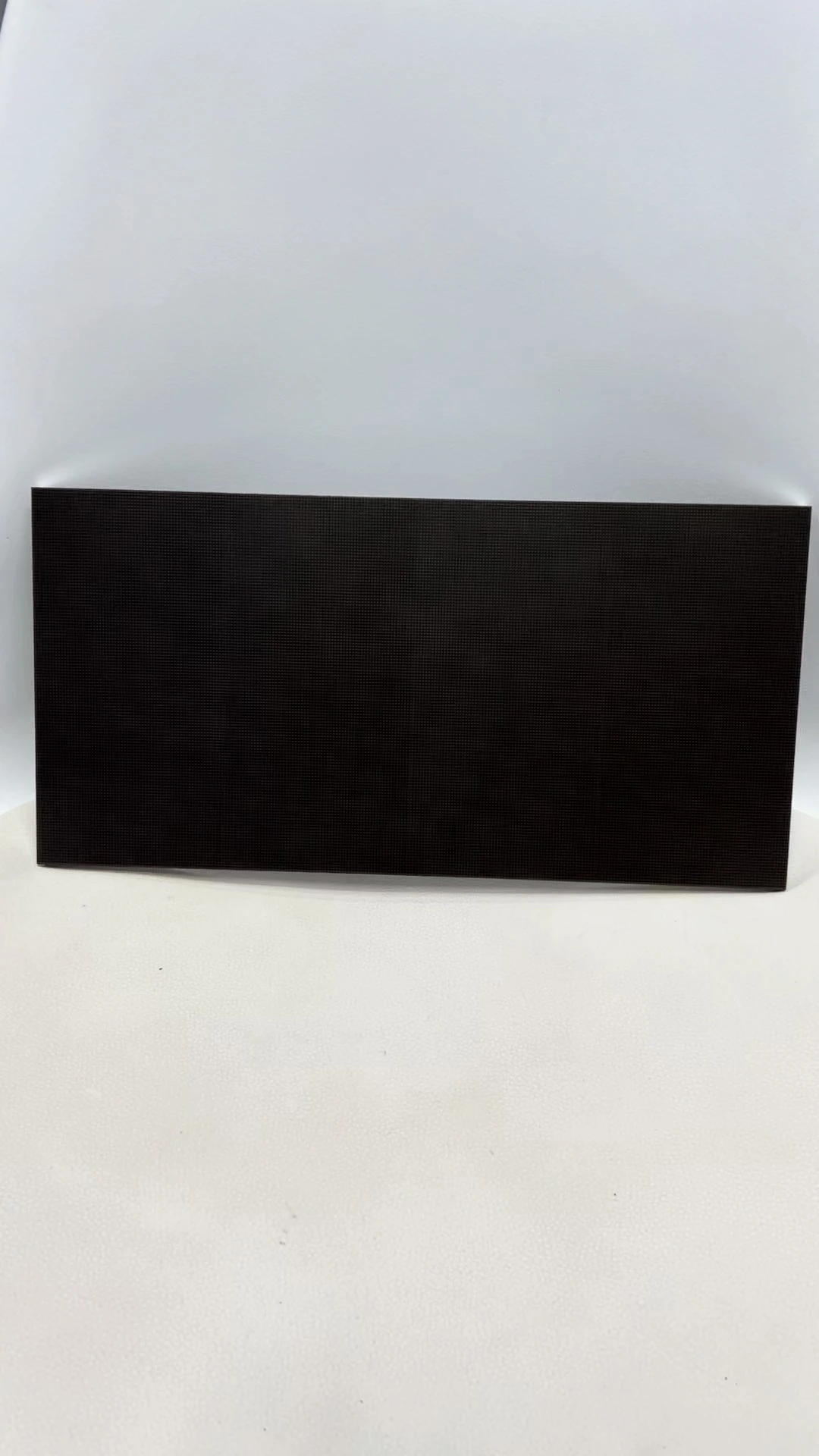

Product rendering
