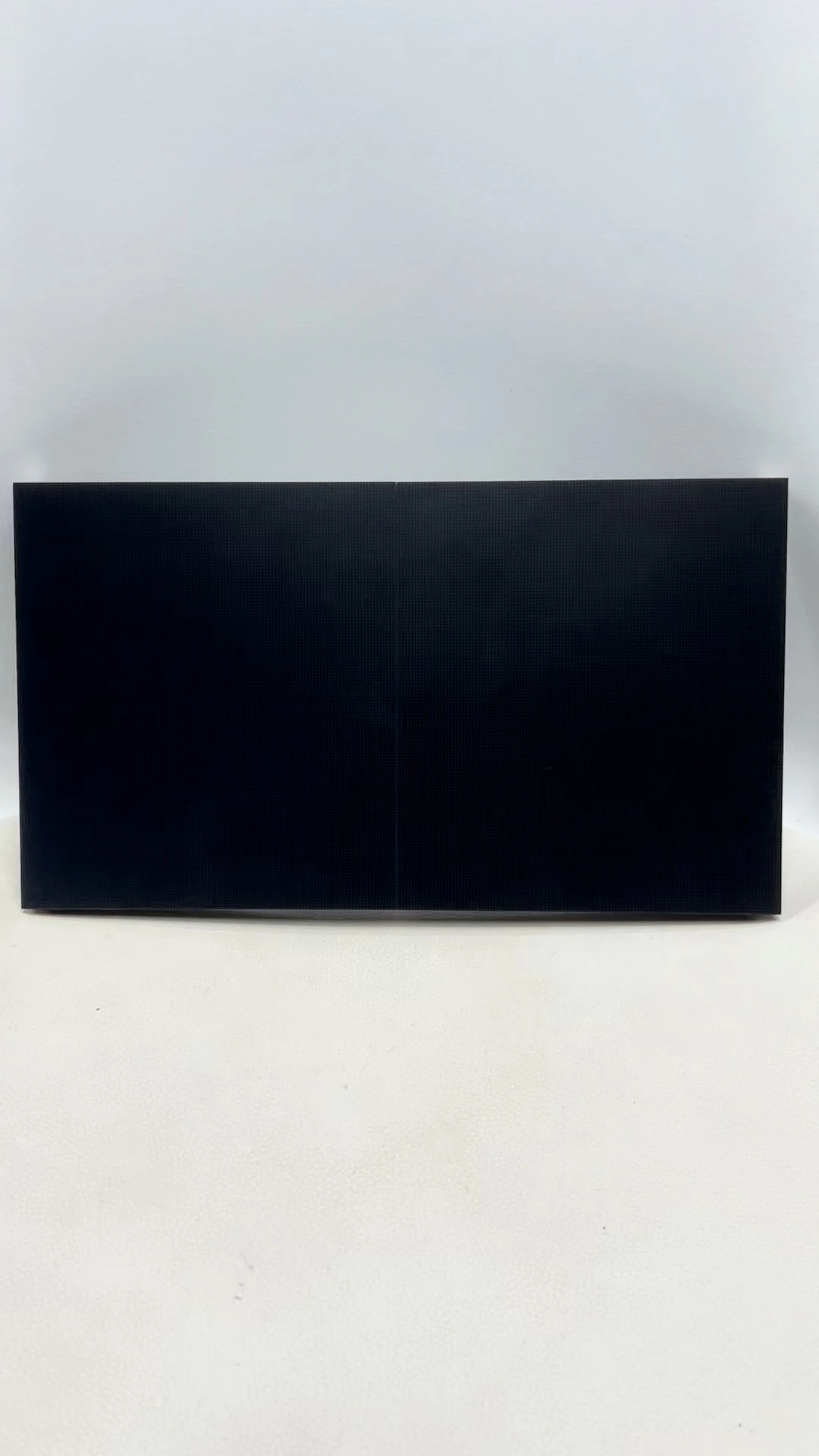

TC-DM series 300x168.75mm Inverted COB Display Module IP65 16:9 2K/4K/8K Indoor
TC-DM （300x168.75）Series
Packaging Method: Inverted COB
Module Size: 300mm*168.75mm
Pitch: 0.9375mm/1.25mm/1.5625mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; Positive protection level IP65; Viewing angle exceeding 175 °; Adopting aluminum bottom shell with good flatness; More flexible size selection; 3840HZ high refresh rate; 20000:1 high contrast; Good consistency of white balance,16: 9 golden ratio, can be assembled into 2K/4K/8K, perfect point-to-point display
Application Scenarios: Indoor fixed installation, Universities, Governments, Hospitals, Enterprises, etc
Packaging Method: Inverted COB
Module Size: 300mm*168.75mm
Pitch: 0.9375mm/1.25mm/1.5625mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; Positive protection level IP65; Viewing angle exceeding 175 °; Adopting aluminum bottom shell with good flatness; More flexible size selection; 3840HZ high refresh rate; 20000:1 high contrast; Good consistency of white balance,16: 9 golden ratio, can be assembled into 2K/4K/8K, perfect point-to-point display
Application Scenarios: Indoor fixed installation, Universities, Governments, Hospitals, Enterprises, etc
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
DESCRIPTION
This product is a fully inverted C/O B display module product with a module size of 300mm * 168.75mm, which can be matched with a die cast aluminum box with a box size of 600mm * 337.5mm and a 16:9 golden ratio. It can play high-definition video/image sources point-to-point and achieve 2K/4K/8K large screen display.
Product specification
| Product Model | TC-DM series | |||
| Pixel | P0.9375 | 1.25 | 1.5625 | 1.875 |
| Pixel density (pixels/㎡) | 1137777 | 640000 | 422500 | 284444 |
| LED packaging method | Fully inverted COB | |||
| Module Size | 300*168.75mm | |||
| Module resolution | 320*180 | 240*135 | 192*108 | 160*90 |
| Material of module bottom shell | Aluminum bottom shell | |||
| Module weight (Kg/pcs) | 0.5 | |||
| Falsh correction storage | Have | |||
| White Balance Brightness (nits) | 600 | |||
| Viewing angle (degrees) | Horizontal 170 °, vertical 170 ° | |||
| Refresh rate (Hz) | 3840Hz | |||
| contrast ratio | 100000：1 | |||
| Color temperature (K) | 2000-10000(Adjustable) | |||
| luminance uniformity | 97% | |||
| Chromaticity uniformity | ±0.003Cx, Cy | |||
| Brightness/chromaticity correction | All supported | |||
| Display unit input voltage | AC 100~240V 50/60Hz | |||
| Working voltage (V) | DC 4.5-5.0 | |||
| Maximum power (W/pcs) | ≤20W | ≤18W | ≤18W | ≤18W |
| Maintenance method | Front/Rear Maintenance | |||
| Module signal interface | HUB320 | |||
| IP protection level | IP54(Surface can be cleaned with clean water) | |||
| Working temperature and humidity range | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage temperature and humidity range | ﹣40℃-+60℃/10%RH-90%RH | |||
| Working life (H) | 100000 | |||
| Authentication | CCC、CQC、CEC、CE、FCC、ROHS、TUV | |||
Product rendering
