TC-DX Series Micro Optical COB Screen 20000:1 Contrast 2K4K8K Ready
TC-DX Series
Packaging Method: Inverted COB
Cabinet Size: 600mm*337.5mm
Module Size: 300mm*168.75mm/150mm*168.75mm
Pitch: 0.7813mm/0.9375mm/1.25mm/1.5625mm/1.875mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; Positive protection level IP65; Viewing angle exceeding 175 °; 3840HZ high refresh rate; 20000:1 high contrast; Good consistency of white balance,16: 9 golden ratio, Surface micro optical structure, soft image, anti blue light, and no glare.
Application Scenarios: Indoor fixed installation, Smart security monitoring center, Conference rooms for government and enterprise units, Energy industry, etc
Packaging Method: Inverted COB
Cabinet Size: 600mm*337.5mm
Module Size: 300mm*168.75mm/150mm*168.75mm
Pitch: 0.7813mm/0.9375mm/1.25mm/1.5625mm/1.875mm
Functional Features: Low pixel failure rate; Stronger collision avoidance capability; Positive protection level IP65; Viewing angle exceeding 175 °; 3840HZ high refresh rate; 20000:1 high contrast; Good consistency of white balance,16: 9 golden ratio, Surface micro optical structure, soft image, anti blue light, and no glare.
Application Scenarios: Indoor fixed installation, Smart security monitoring center, Conference rooms for government and enterprise units, Energy industry, etc
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
DESCRIPTION
This product is an inverted C/O B display box product with a box size of 600mm * 337.5mm and a 16:9 golden ratio. It can play high-definition video/image sources point-to-point and achieve 2K/4K/8K large screen display.
Product size
Module size: width 150mm * height 168.75mm;
Cabinet size: width 600mm * height 337.5mm
2 (8)
1 (20)
Product specification
| Product Model | TC-DX Series | |||
| Pixel | P0.9375 | 1.25 | 1.5625 | 1.875 |
| Pixel density (pixels/㎡) | 1137777 | 640000 | 422500 | 284444 |
| LED packaging method | Fully inverted COB | |||
| Module Size | 150*168.75mm | |||
| Module resolution | 160*180 | 120*135 | 96*108 | 80*90 |
| Surface technology of lamp board | Matte matte finish | |||
| Cabinet size | 600*337.5mm | |||
| Cabinet resolution | 640*360 | 480*270 | 384*216 | 320*180 |
| Cabinet weight (Kg/pcs) | 4.2 | |||
| Circuit scheme | Co negative circuit/Co positive circuit | |||
| Falsh correction storage | have | |||
| White Balance Brightness (nits) | 600 | |||
| Viewing angle (degrees) | Horizontal 170 °, vertical 170 ° | |||
| Refresh rate (Hz) | 1920-3840Hz | |||
| contrast ratio | 20000：1 | |||
| Color temperature (K) | 3000-10000(Adjustable) | |||
| luminance uniformity | 97% | |||
| Chromaticity uniformity | ±0.003Cx, Cy | |||
| Brightness/chromaticity correction | All supported | |||
| Display unit input voltage | AC 100~240V 50/60Hz | |||
| Maximum power (W/pcs) | 350W | 330W | 330W | 320W |
| Maintenance method | Front/Rear Maintenance | |||
| IP protection level | IP54(Surface can be cleaned with clean water) | |||
| Working temperature and humidity range | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage temperature and humidity range | ﹣40℃-+60℃/10%RH-90%RH | |||
| Working life (H) | 100000 | |||
| Authentication | CCC、CQC、CEC、CE、FCC、ROHS、TUV | |||

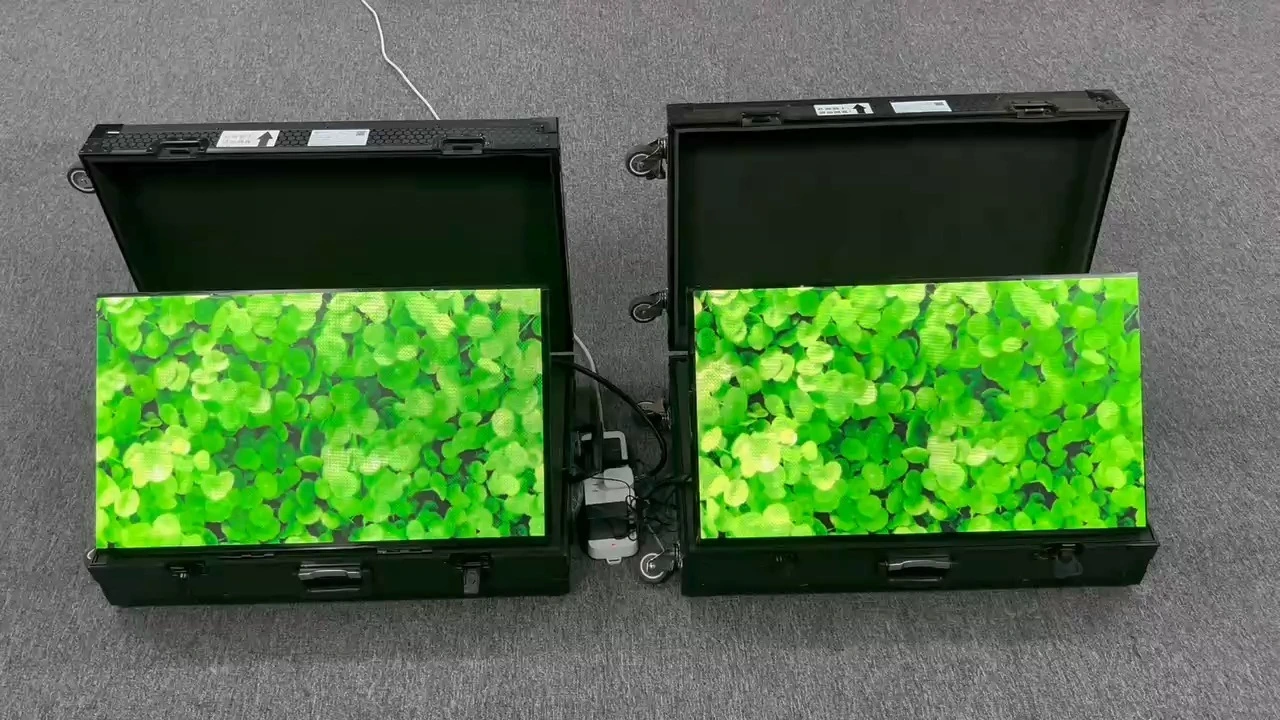

Product rendering
