TC-OX Series 500x500mm Outdoor Rental LED Display Waterproof COB Technology
TC-OX Series
Packaging Method: Inverted COB
Cabinet Size: 500mm*500mm/500mm*1000mm
Module Size: 250mm*250mm
Pitch: 1.5625mm/1.953mm/2.604mm
Functional Features: Fully waterproof box, front and rear installation, front and rear maintenance, supports quick installation, supports both hard and soft connections of the box
Application Scenarios: Outdoor fixed installation/Outdoor rental,
Airports, high-speed rail stations, media, concerts, cultural and tourism activities, etc
Packaging Method: Inverted COB
Cabinet Size: 500mm*500mm/500mm*1000mm
Module Size: 250mm*250mm
Pitch: 1.5625mm/1.953mm/2.604mm
Functional Features: Fully waterproof box, front and rear installation, front and rear maintenance, supports quick installation, supports both hard and soft connections of the box
Application Scenarios: Outdoor fixed installation/Outdoor rental,
Airports, high-speed rail stations, media, concerts, cultural and tourism activities, etc
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
DESCRIPTION
This product can be applied in the outdoor rental field
Product size
Module size: width 250mm * height 250mm；
Cabinet size: width 500mm * height 500mm
2 (11)
Product specification
| Product Model | TC-OX Series | ||
| Pixel | 1.5625 | 1.963 | 2.604 |
| Pixel density (pixels/㎡) | 409600 | 254016 | 147474 |
| LED packaging method | Fully inverted COB | ||
| Indoor/Outdoor | Outdoor | ||
| Pixel | Real Pixel | ||
| Module Size | 250*250mm | ||
| Surface hardness | 4H | ||
| Module resolution | 160*160 | 126*126 | 96*96 |
| Surface technology of lamp board | Matte matte finish | ||
| Cabinet size | 500*500mm | ||
| Cabinet resolution | 320*320 | 252*252 | 192*192 |
| Cabinet weight (Kg/pcs) | 7 | ||
| Circuit scheme | Co negative circuit/Co positive circuit | ||
| Falsh correction storage | Have | ||
| White Balance Brightness (nits) | 3000 | ||
| Viewing angle (degrees) | Horizontal 160 °, vertical 160 ° | ||
| Refresh rate (Hz) | 3840Hz | ||
| Frame Frequency(Hz) | 50&60 | ||
| Gray scale（bits） | ≥14 | ||
| contrast ratio | 10000：1 | ||
| Color temperature (K) | 9300 | ||
| luminance uniformity | 97% | ||
| Chromaticity uniformity | ±0.003Cx,Cy | ||
| Brightness/chromaticity correction | All supported | ||
| Display unit input voltage | AC 100~240V 50/60Hz | ||
| Maximum power (W/pcs) | 240 | 180 | 180 |
| Maintenance method | Rear Maintenance | ||
| IP protection level | IP65 | ||
| Working temperature and humidity range | ﹣10℃-+60℃/10%RH-90%RH | ||
| Storage temperature and humidity range | ﹣20℃-+60℃/10%RH-90%RH | ||
| Working life (H) | 100000 | ||

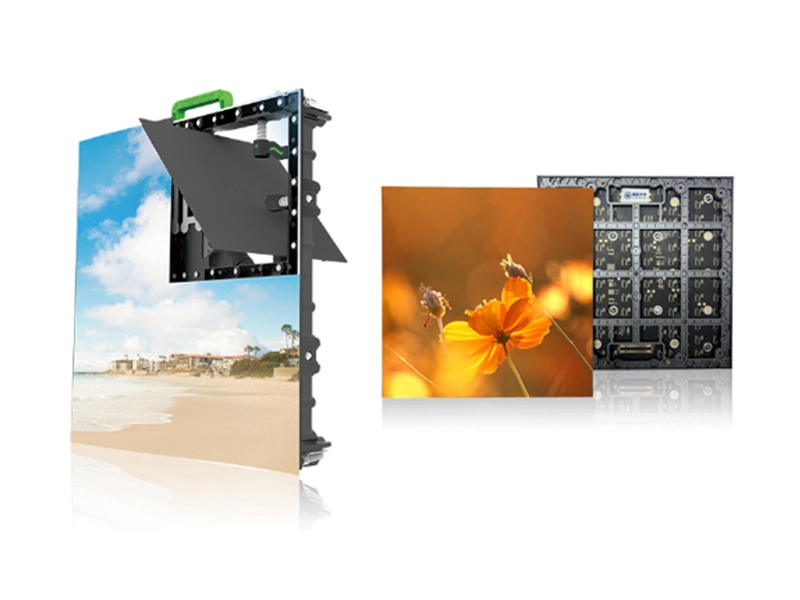

Product rendering
